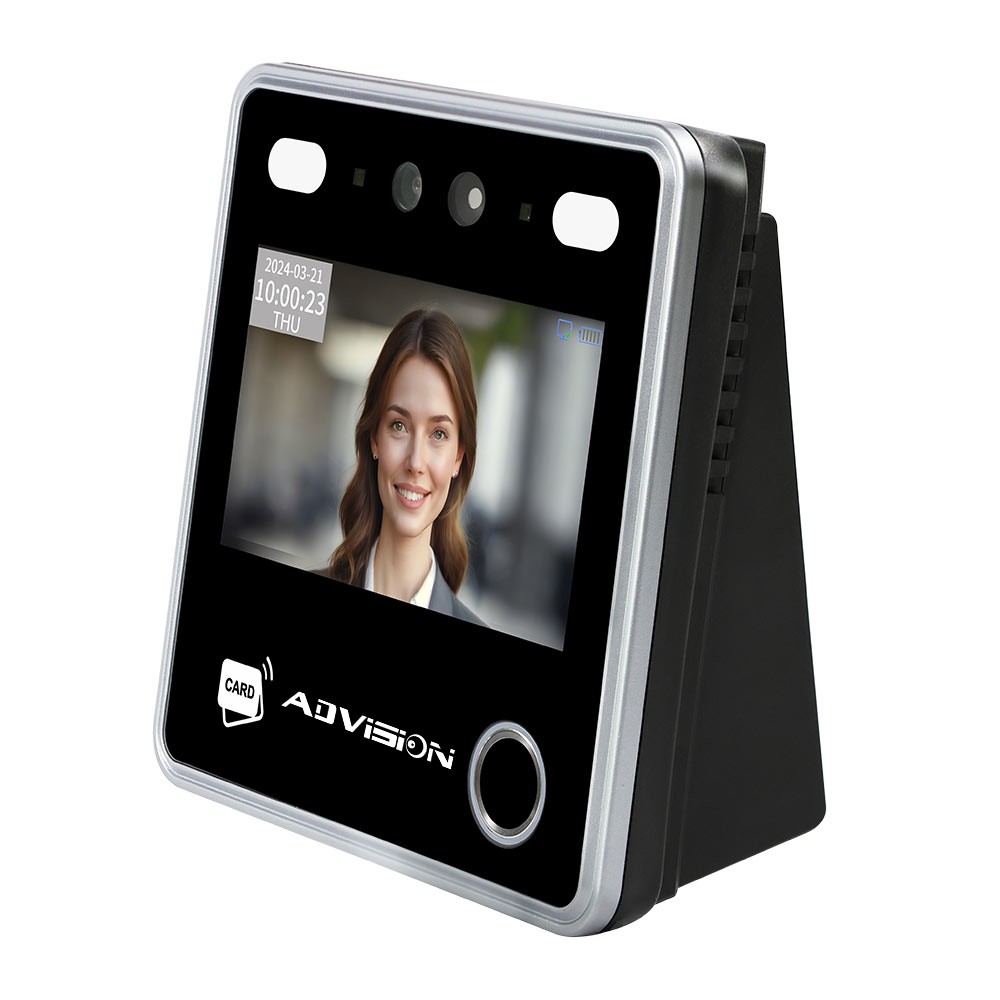

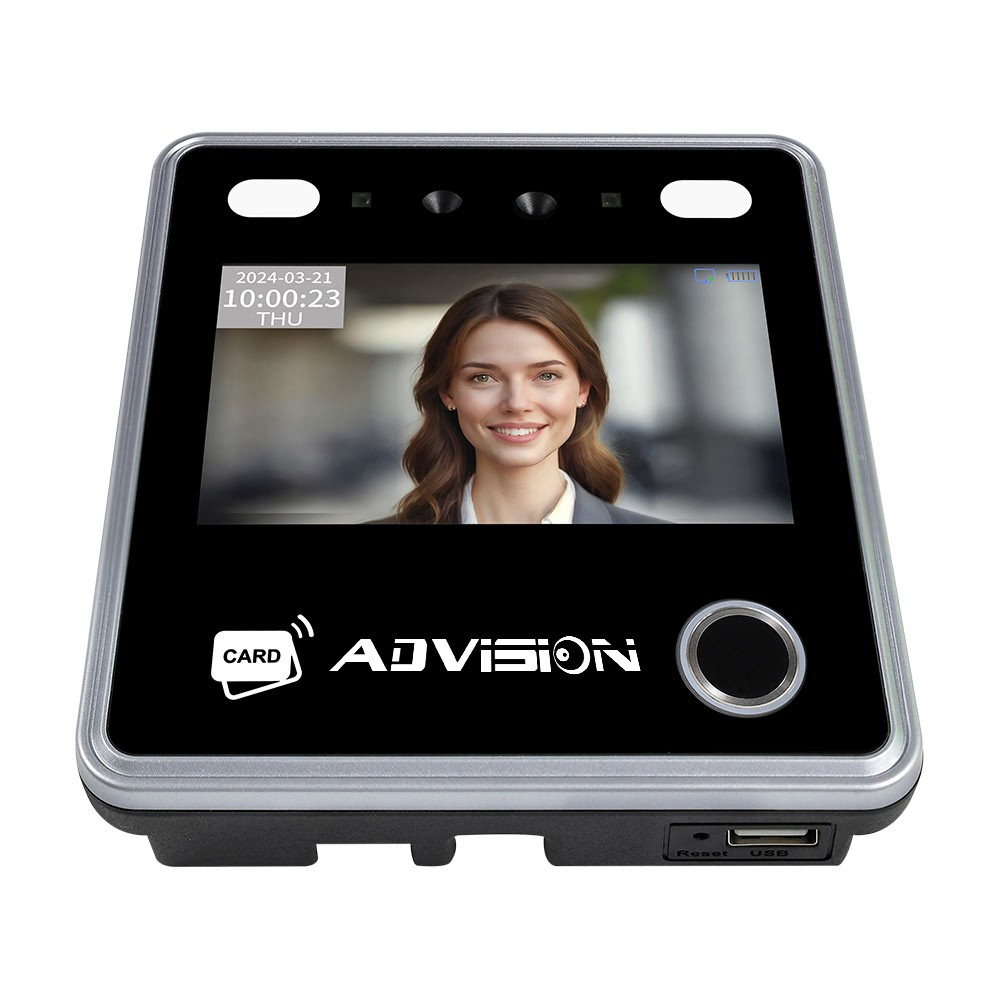

Finger Print AD-505 FPWVB-AI

4.3-inch touch screen with dual cameras (color + infrared) for accurate recognition.
Supports face, fingerprint, palm vein, card, and password authentication.
Ultra-fast recognition speed of ≤0.2s with storage capacity up to 500,000 logs.
Face recognition accuracy of 99.7% with advanced anti-spoofing live detection.
Multiple connectivity options: TCP/IP – USB – WiFi, plus door access control.
Ideal for businesses with both local and cloud-based attendance software.

Specification	Details
Screen	4.3 Inch Touch Screen
Keypad	Touch keypad
Operation System	LINUX 3.10
CPU	800M single-core ARM Cortex-A7
NPU	800G (0.8T) Hashrate
RAM, ROM	256M DDR3L, 4G EMMC
Camera	1MP color camera + 1MP infrared camera
Live Detection	Dynamic dual-camera anti-counterfeiting, preventing black-and-white, color photos and videos from deception
Logs Capacity	500000
Verification	Face, Palm vein (optional), Fingerprint, Password, ID Card (optional), IC Card (optional)
Face Capacity	5000
Fingerprint Capacity	10,000
Palm Vein Capacity	10,000
Card Capacity	15,000
Face Recognition Accuracy	99.70%
Recognition Speed	≤0.2s
Recognition Distance	0.5–2.5 meters (0.5–1.5m with face recognition on)
Principle of Identification	Face algorithm based on multi-task cascaded convolutional neural network
Based On	Video stream for dynamic face detection, tracking, and recognition
WDR	Wide dynamic range, supports accurate face recognition under strong light and backlight
USB	USB2.0 x1, Support U disk import/export data
Power Supply	DC12V 1A
Built-in Battery (optional)	7.4V, 2000mAh
Network Communication	TCP/IP, USB, WiFi
Mask Detection	Supports masked face detection with face recognition
Access Control Interface	Lock output, Doorbell output/alarm ring, Wiegand input/output
Free Attendance Software	Local software and web-based cloud software
