Smart 5MP IP Camera for Reliable Video Surveillance

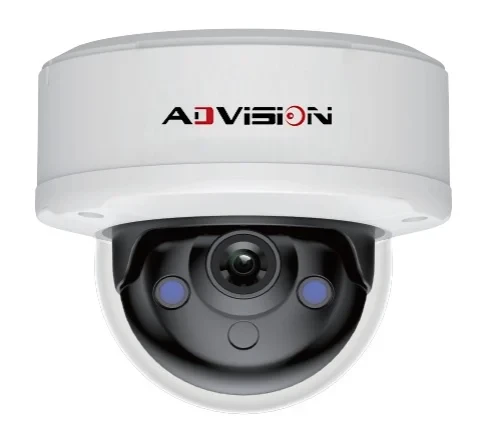

The ADVISION AD-D1511S-A-S2-L delivers detailed 5MP surveillance video using a 1/2.7-inch CMOS sensor. It is suitable for monitoring businesses, offices, retail stores, entrances, buildings and other locations requiring dependable day-and-night security.
The camera includes a 2.8 mm fixed lens with an F1.6 maximum aperture. An optional 3.6 mm lens is also available for installations requiring a different viewing angle.
Smart Dual Lighting with a 30-Metre Range
The camera combines infrared and white-light illumination, each providing a range of up to 30 metres. Its day/night functionality supports colour and black-and-white imaging, while 120dB WDR, 3D noise reduction, BLC and HLC help improve image quality in challenging lighting conditions.
Intelligent Motion Detection and Perimeter Protection
Smart Motion Detection helps identify relevant activity within the monitored area. The camera also supports perimeter-protection functions, including intrusion and tripwire detection, with classification for people, vehicles and non-motorised targets.
When connected to a compatible NVR, the camera can also support AI-assisted search for more efficient footage review.
Efficient Video Compression and Built-In Audio
Support for H.265+, H.265 and H.264+ compression helps reduce bandwidth and storage requirements while maintaining video quality. The main stream supports 5MP video at up to 25/30 fps, with an additional D1 sub-stream.
A built-in microphone captures audio alongside video without requiring a separate external microphone.
Flexible Connectivity and Durable Construction
The camera can be powered using 12V DC or PoE 802.3af, helping simplify installation. It includes an RJ-45 network connection and supports ONVIF, CGI and P2P interoperability. Monitoring and management are available through PC software or the ADVISION Smart application for iOS and Android.
Its metal housing carries an IP67 rating for protection against water and dust, as well as an IK10 impact-resistance rating. The camera is designed to operate in temperatures ranging from -30°C to +60°C.
Key Features
- 5MP maximum resolution.
- 1/2.7-inch CMOS image sensor.
- 2.8 mm fixed lens with an optional 3.6 mm lens.
- IR and white-light illumination up to 30 metres.
- Smart Motion Detection.
- Intrusion and tripwire detection.
- Human, vehicle and non-motorised target classification.
- Built-in microphone.
- 120dB WDR and 3D noise reduction.
- H.265+ and H.264+ video compression.
- 12V DC and PoE power options.
- ONVIF, CGI and P2P support.
- Metal housing with IP67 and IK10 protection.
- Maximum power consumption of 3W.
